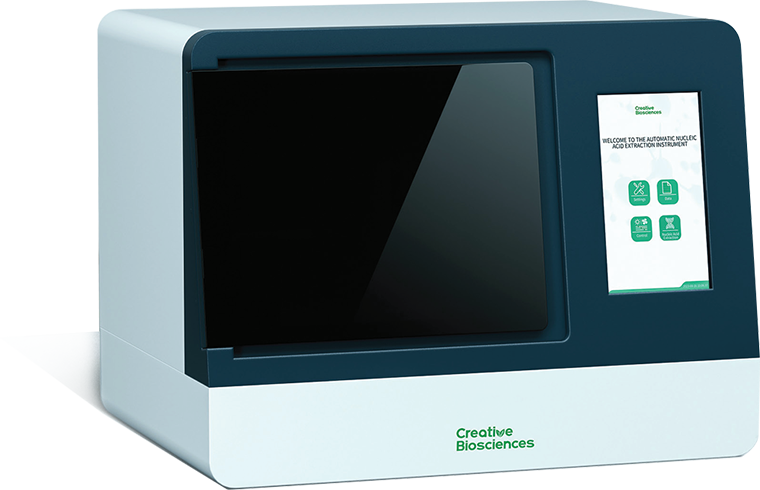

Automatic Nucleic Acid Extraction Instrument H24
Our Fully Automated Nucleic Acid Extraction Instrument redefines precision and efficiency in molecular biology. Using advanced magnetic bead adsorption technology, this smart system seamlessly collects, transfers, and releases magnetic beads through the innovative coupling of magnetic rods and sleeves — delivering consistently high-quality nucleic acids from your biological samples.

Designed with high automation, intelligent controls, and pinpoint accuracy, this device simplifies the traditionally complex and manual nucleic acid extraction process. The state-of-the-art automated platform, paired with an optimized extraction workflow, accelerates your lab’s productivity and ensures reliable, reproducible results every time
Why Choose Our Instrument?

Fully automated and
intuitive operation for
effortless workflow

Enhanced throughput and
efficiency for busy
laboratories

High precision magnetic
bead handling for superior
nucleic acid purification

Reliable and reproducible
results you can trust

Optimized extraction
protocol minimizes
hands-on tim

Equipped UV sterilization
to avoid cross laboratory
contamination

Technical Specifications
Automatic Nucleic Acid Extraction Instrument H24
Dimensions(W×D×H) (650x480x512)mm Heating time 25℃~100℃≤3 mins
Weight 55kg Pipetting accuracy ≤10%
Throughput Max 24 samples Pipetting repeatability ≤10%
Run time per sample < 6 hours Magnetic flux density ≥4500Gs
Magnetic rod sleeve oscillation frequency ≤12Hz UV intensity ≧70μW/cm²
UV wavelength 254nm Operating interface 10.1 inch touch screen
Data interface USB2.0 Maximum input power 600w
Built-in storage 32 Mb (storage of ±2000 samples)
