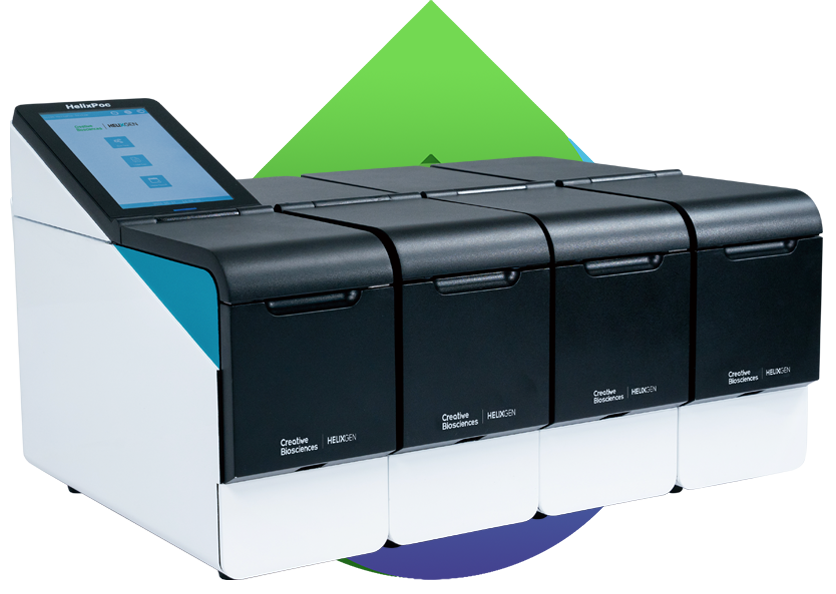

HelixPOC Automated
Microfluidic qPCR System
The HelixPOC Automated Microfluidic gPCR System combines microfluidics with real-time PCR technology. A reagent-preloaded microfluidic cartridge, controlled by an analyzer, allows the entire nucleic acid detection process to be fully automated in an enclosed system. This includes sample preprocessing, DNA extraction, PCR amplification, fluorescence measurement, and data analysis. Such a fully automated and enclosed point-of-care (POCT) system enables molecular testing anywhere, in a sample-in, result-out manner.
Product Highlights
Fully Automated

Fully automatic, real-time display & record, data traceable

Totally Enclosed

No risk of contamination, no need of PCR lab

All-in-one

DNA extraction, PCR amplication and data analysis in one instrument, no additional equipment required

Flexible To Use

Compact, portable and cascadable, for multiple applications.

Modularised Design

6 auxiliary units can be attached forsimultaneous or individual use

Panel Test Capability

Microfludic technology combined with multi- fluorescence detetion channels, up to 16 gene analysis capability per cartridge

Sample-in Result-out

On site, real time

No need of PcR lab

No need of lab professionals

Wide Applications
Aquaculture
Pet clinic
Animal Husbandry
Food safety
Clinical Medicine
Bio Safety and Disease Control
Workflow: Four Easy Steps

Easy to use with less than one minute hands-on time

Sample suspension
Load sample into cartridge
Insert cartridge and start test
Report out
Specifications
HelixPOC
Size(L×W×H) Main module 353×122×290 mm Power supply AC 110-220 V 50/60 Hz; Main module: 80 VA; Auxiliary module: 60 VA
Size(L×W×H)Auxiliary module 353×122×224 mm Communication interface USB, RJ45 Ethernet
Weight Main module 6.5 Kg Display screen 7 inches
Weight Auxiliary module 6.1 Kg
Thermal parameters
Heating/cooling methods Semiconductor way Maximum cooling rate 4.0°C/S
Temperature Range 4 ~ 99℃ Temperature accuracy ±0.2°C
Maximum heating rate 5.0°C/S Temperature Uniformity ±0.2°C
